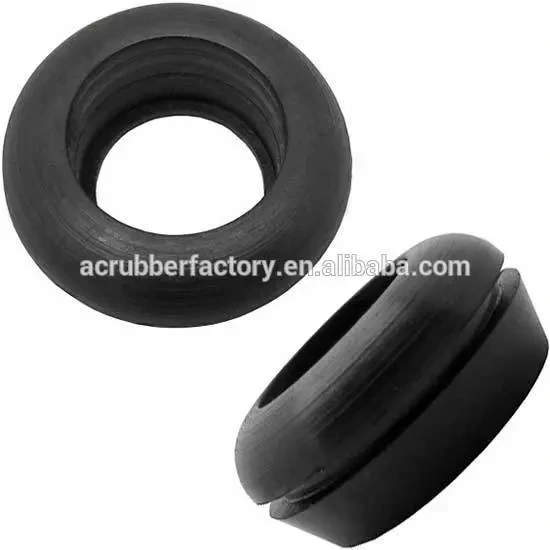

Rubber grommet ( waterproof rubber grommets  )

Grommets, be they rubber, plastic or made of some other material, serve a multitude of functions for the automotive industry. As with any automotive part, finding the right fit and type of grommet is crucial to the proper maintenance and function of your car or truck. This is particularly true of grommets used in conjunction with such a key component of an engine as the carburetor.

Automotive Uses ( waterproof rubber grommet )

Grommets, usually rubber, are used in several areas of an automobile in addition to carburetors. Some of the more common areas grommets are used are as valve covers, the antenna assembly and firewalls. They are also used to seal filler necks (such as windshield wiper housings). Because automobile grommets are rubber, there is also the potential to fit them to your particular needs as they arise.

Carburetors ( waterproof rubber grommet)

Grommets used for carburetors help to prevent leaks and improve the seal of components in and around the carburetor. Grommets also aid in reducing friction that can cause warping of metallic parts, and ultimately break down engines. A rubber grommet also acts as an insulator for hoses and wires running to and from a carburetor (and other engine parts), to help maintain a consistent temperature. Grommets designed for use in automobiles are built to withstand the high and fluctuating temperatures of a car or truck’s engine.

Distributors, Inventory and Pricing Free Datasheet Downloads

Customization ( waterproof rubber grommet)

Grommets are available in large sets of varying sizes and shapes. If a grommet does not quite fit for the use you intend, they can be customized to do so. This may mean trimming edges or shaving some of the bottom to attain the proper dimensions. This may be the case when using grommets for shock mounts, on sharp or potentially dangerous areas on your automobile or for use as a valve breather (you would cut the bottom of the grommet off in this case).

Other Uses ( waterproof rubber grommet  )

While grommets have a number of uses with automobiles, including carburetors, there are a host of other uses as well. If a project requires punching holes in wood or metal, and subsequently running cables or wires through the holes, often grommets will be used to reduce chafing and damage to the wires. Grommets are also used on tarps, tents and other materials that require holes strong enough to run rope through and tie down.



Part Name	grommets
Service	OEM OR ODM
Part Material	Silicone or rubber (NR, NBR,SBR,BR,IR,CR,EPDM,IIR,Fluoro rubber,SIR,PU,ACM,CO,etc)
Material Hardness	Silicone about 20~80 Shore A; rubber about 30~90 Shore A
Size	Customized
Shape	Customized
Color	Customized according to Pantone colors
Appearance	as customer’s requirement
Drawings	2D OR 3D acceptable
Temperature Resistance	-40~300 degree centigrade
Tolerance	0.05mm
Technology	Hot pressing molding or injection Molding
Second Processing	Vulcanizing / Deburring / Silk-screen / Carving / printing
Quality control	internal QC control
Part Feature	1.Oxidation , Chemical,oil, acid ,alkali , weather resistance
	2. colorful ,Anti-aging,good flexibility, good elasticity
Food grade material	FDA or LFGB
MOQ:	Amount : More than USD 200/each part(depends on specific part)
Shipping ways	1. By sea from Yantian port. 2. By express: DHL/UPS/FEDEX ,etc 3. By air
Package	Normally PE bag+carton or customized as customer’s request
Trade Term	Ex-works; FOB Shenzhen/Guangzhou ; CIF
Payment Term	Sample mold: 100% prepaid,MP Mould: 50% deposit by T/T in advance, balance 50% paid after samples approval
	Goods: 50% deposit, 50% before shipment
	T/T,  Western Union, PAYPAL
Lead time	5~10 days for making mold,7~15 days for mass production (depends on part structure )
Specification	Confirm to ISO-9001 and ROHS Directive Compliant Green Products
Application field	1. Electron components
	2. Medical equipment
	3. Home appliance
	4. Mechanical equipment
	5. Office facilities
	6. Aviation
	7. Construction
	8. Automobile







What we can do



Shenzhen Anconn Rubber & Plastic Industrial Limited, is a reliable silicone, rubber, and plastic manufacturer in China, Specialized in silicone/rubber stoppers, silicone/rubber tubes, rubber feet, silicone keypads, rubber handles, suction cups, grommets, seals, O rings, protective covers, rubber mounts, rubber foam items, EVA foam items , plastic parts and other various items, in our company you can find the products to satisfy your various demands.

Since establishment in 2014(we have in this field for 15 years), we devoted ourselves to produce high quality rubber and plastic products, which was realized by adopting best raw materials (meet SGS, Rohs, FDA and Reach standards), strict production processes, and continuous R & D investment.

When other companies are doing trade business, we don’t follow, we have our own factory to produce molds and products, we don’t produce molds and products by third parties. We are factory, which direct to customers, this is our advantages. We also have an engineer team which can support our customers who can not offer 2D or 3D drawings. We offer fast services and more advantage prices to support and help your customers.



What is our consistent adherence ?



“ Quality first & considerate service” is never a decorative slogan in Anconn, this is the conduct code throughout every aspect of each Anconn staff’s daily work. We focus on what customers really concern.

Just because this principle, Anconn already cooperated with many partners from more than 100 countries, and help our customers to win the competition.

We know there must be another you who understand our insistence on quality and service. Admire our honesty and willing to build long term cooperated relationship.



May be you have some questions



1)Where is the rubber comes from ?
rubber comes from a milky white juice which some trees and plants have instead of sap. This liquid, called latex, can be found in the roots, stems, branches, bark, leaves, and fruit of over 400 different plants. Most latex, however, comes from the inner bark of the hevea, or rubber tree
To get the latex, workers cut narrow slits in the bark of the rubber tree at daybreak, for the latex flows easily when the air is still cool. The latex is then allowed to drip into cups attached to the tree for three hours.

The latex, which is 2/3 water, is then taken to a rubber factory quickly, for it spoils easily. There, it is heated and mixed with acid. This process causes the latex to coagulate, or form solid curds. These curds are crude rubber.



2)What are the colors your factory can make ?
We can make any colors on the pantone cards, what’s you should do is telling me the color numbers you want, then our factory will match the colors for you according to your requirements.



3)How can you make sure the dimensions are correct of the products ?
We have thickness gauges, hardness testers, callipers, tension testers and other instruments to make sure each parts of your products are correct, also we use our CNC machines to produce molds, the precision can reach to 0.01 mm.

4)Can your factory delivery goods on time ?

Yes, we have a very big mold factory, we have 30 Machines and 20 technical staffs to make molds, So we can finish your mold within 5 days after receiving your deposit.

We have 50 general workers to produce products after molds are ready, they work 3 shifts, it is never stop to produce products, so we are confident to finish any order on time.





5) Types and properties of rubber

There are many types of rubber, each with special properties:
Neoprene Rubber - Good weatherability and resistance to abrasion.

Buna-N Rubber - Resists oil and solvents. Not as weather resistant. Also called nitrile, acrylonitrile, and NBR.

Silicone Rubber - Good flexibility and resistance to ozone, sunlight, and oxidation. Very good electrical insulator. Also called polysiloxane.

EPDM Rubber - Excellent for outdoor use.

Natural Gum Rubber - Superior resilience, tensile strength, elasticity, and abrasion resistance.

Fluoro rubber - Resists corrosive environments, with exceptional resistance to heat, aging, weather, ozone, oxygen, and sunlight, plus fuels, solvents, and chemicals. Good flame resistance. Also called FKM.

Natural Latex Rubber - Ultra-elastic has excellent strength and stretchability. Has exceptional tear resistance.

SBR Rubber - Has good abrasion and wear resistance. Also called styrene butadiene.

Vinyl Rubber - Good resistance to water, chemicals, and weathering. Also called polyvinyl chloride (PVC).

Santoprene Rubber - Combines the characteristics of rubber and plastic to produce a material that offers excellent weatherability and chemical resistance.

ECH Rubber - Excellent resistance to fuel, oil, and ozone. Also called epichlorohydrin.

Butyl Rubber - Nearly air and gas tight. Has good weatherability, oxidation resistance, and electrical resistance. Excellent resistance to alkalies and acids. Often used for inner tubes. Also called isobutylene isoprene.

Latex-Free TPE Rubber - Transparent elastomer with gel-like consistency to absorb vibration and conform to irregular surfaces. Super stretchy. Has great tensile strength. This type of rubber is nontoxic and nonallergenic.

Hypalon Rubber - Superior weatherability and resistance to ozone, chemicals, and oil even at high temperatures. Resists flex cracking and abrasion from weather, heat, and chemical exposure. Low water absorption. Also called chlorosulfonated polyethylene.

What you can get from cooperating with us ?
1) You can definitely always enjoy the best price versus performance ratio
2) Anconn always grasps the latest technology and market trends, to lead you go faster than your competitor
3) You will get our comprehensive technical support, have our most professional suggestion on each project, and tailored products according to your specific demand.
4) Every of your inquiry and question will get our positive and rapid response, because we have a professional and efficient sales team.
